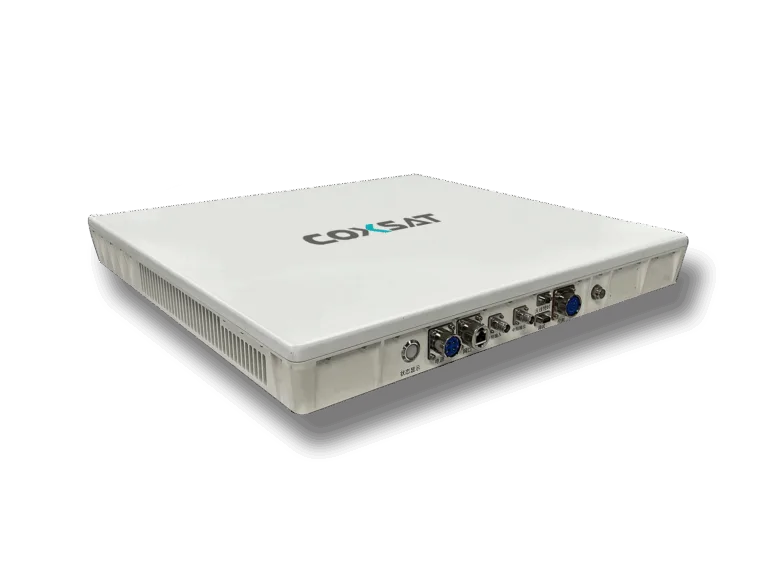

Ka-band Satellite Communication Phased Array Terminal
Separate transmitting and receiving aperture design
Beam scanning range: azimuth 360°, off-axis angle: ≥±70°
High-densityintegration of receiving and transmitting components
Built-in up/down converters with adjustable RF gain
Satellite tracking capability, keeping internet connection for vehiclespeeds up to 120 km/h (highways) and 30 km/h (rural roads)
Flexible power system, adaptable as a portable phased arrayterminal
Controllable output power
Includes Beidou/GPS positioning and timing functions, with antennaposition report function
Modem integrated
Technical parameters
|
Items |
Parameters | Remarks | |
|
Working Frequency |
Tx | 27.5~31GHz | |
|
Rx |
17.7~21.2GHz | ||
| Beams | Tx | 1 | |
| Rx | 1 | ||
| EIRP | ≥75dBm @29.25GHz | Normal Direction | |
| G/T | ≥8.8dB/K @19.45GHz | Normal Direction | |
|
Scanning Range |
Azimuth | 0° ~ 360° | |
| Off-axis angle |
≥±70° |
||
|
Polarization Isolation |
≥30dBc @14.1GHz | ||
| Polarization | Circular | ||
| Power Consumption | ≤470W | ||
| Power Supply | 28V | ||
| Dimensions | 650mm × 590mm × 80mm | ||
| Weight |
≤23kgs |
||
| Interfaces | IF Interface | SMA-K | |
| Control Interface | Circular Connector | ||
| Power Interface |
Circular Connector |
|
|
