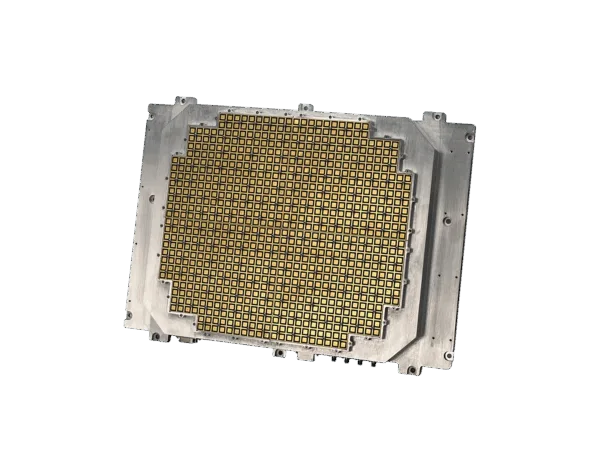

Ku-band Spaceborne Silicon-based Multi-beam Phased Array Antenna
Low-cost flat panel design
Supports 4 transmitting beams with 250 MHz
bandwidth per beamSupports 4 receiving beams with 125 MHz bandwidth per beam
Supports multi-beam positioning
Radiation-hardened capabilities
Operational life span: 7 years
Technical parameters
| Items | Parameters | Remarks | |
| Working Frequency | 10.7GHz~12.7GHz | ||
| 14.0GHz~14.5GHz | |||
| Beams | 4 | ||
| 4 | |||
| ≥73dBm@11.7GHz | Normal direction | ||
| ≥5dB/K@14.25GHz | Normal direction | ||
| Scanning Range | 0~360° | ||
| ±60° | |||
| Polarization | RHCP | ||
| LHCP | |||
| Power Consumption | ≤330W | ||
| ≤110W | |||
| DC 42V | |||
| Dimensions | 476*425*45mm | Connector excluded | |
| 460*340*37mm | Connector excluded | ||
| Weight | ≤7.5kg | ||
| ≤6kg | |||
| Transmitting System External Interfaces | SMA-K | ||
| J30JA-21ZK | |||
| J36A-9ZJB | |||
| Receiving System External Interfaces | SMA-K | ||
| J30JA-21ZK | |||
| J36A-9ZJB | |||
